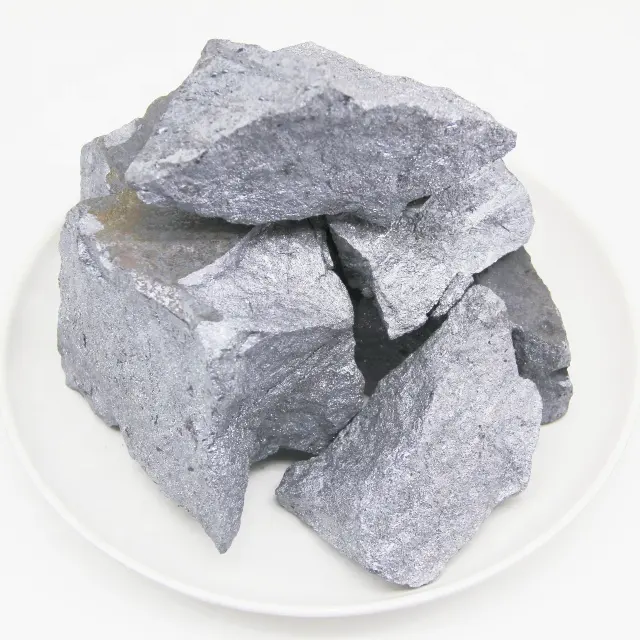

Ferrotitanium is an alloy composed primarily of iron and titanium, along with small amounts of other elements such as carbon and silicon. It is widely used as a deoxidizer, alloying agent, and strengthening additive in the production of steel and other ferrous alloys.

Characteristics

1. Composition: Ferrotitanium typically contains around 10% to 75% titanium and 20% to 80% iron, with carbon and silicon content usually less than 3%.
2. Physical Properties:

• Density: Ferrotitanium has a density ranging from approximately 4.0 g/cm³ to 5.0 g/cm³, depending on its composition.
• Melting Point: The melting point of ferrotitanium varies with its titanium content, typically ranging from around 1600°C to 1750°C.
• Hardness: Ferrotitanium is relatively hard and durable.
• Magnetic Properties: Ferrotitanium exhibits ferromagnetic properties.

Production Process

1. Raw Materials: The main raw materials for producing ferrotitanium are titanium dioxide (usually in the form of rutile or ilmenite), iron scrap or iron ore, and carbonaceous reducing agents such as coke or coal.
2. Smelting: The raw materials are smelted in an electric arc furnace at high temperatures. In the smelting process, titanium dioxide is reduced to titanium by carbon, and iron is added to form the alloy.

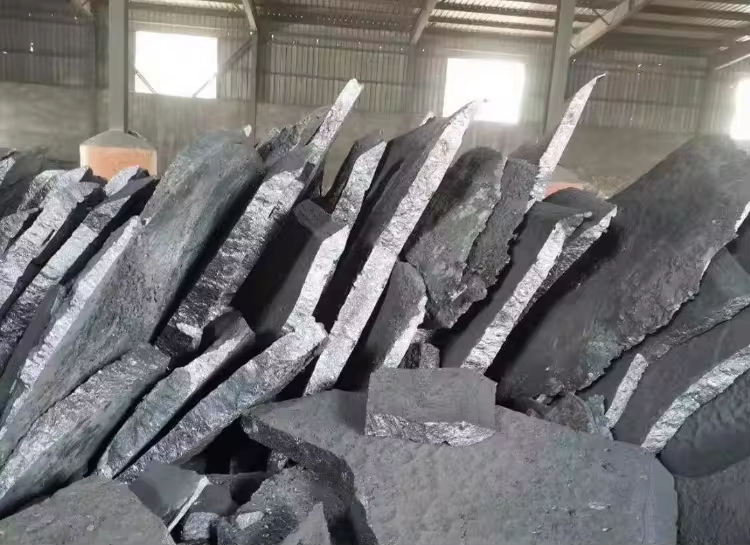

3. Cooling and Solidification: The molten ferrotitanium is cooled and solidified into the desired shape, typically as ingots or granules.
4. Crushing and Sizing: The solidified ferrotitanium is crushed and sized to meet specific customer requirements.

Applications

1. Steel Production: Ferrotitanium is primarily used as a deoxidizing and alloying agent in the production of carbon and stainless steels. It helps to remove oxygen and other impurities from the molten steel, improving its quality and properties.
2. Alloy Manufacturing: Ferrotitanium is used to produce various titanium-containing alloys, such as titanium-nickel alloys and titanium-aluminum-vanadium alloys, which have applications in aerospace, automotive, and medical industries.
3. Foundry Industry: Ferrotitanium is used in foundry applications to improve the strength and ductility of cast iron and other ferrous castings.
4. Welding Electrodes: Ferrotitanium is used as an additive in welding electrodes to improve the weld quality and mechanical properties of the weld metal.
5. Additive Manufacturing: Ferrotitanium can be used as a feedstock material in additive manufacturing processes such as powder metallurgy and 3D printing to produce titanium-containing parts and components.

Ferrotitanium is a versatile alloy widely used in the steelmaking, foundry, and alloy manufacturing industries. Its production involves smelting titanium dioxide, iron, and carbonaceous materials in electric arc furnaces. Ferrotitanium finds applications in steel production, alloy manufacturing, foundry applications, welding electrodes, and additive manufacturing due to its unique properties and ability to improve the quality and performance of ferrous alloys.
